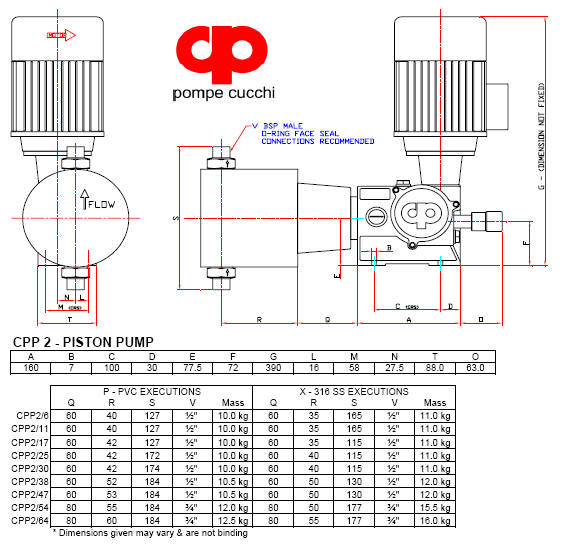

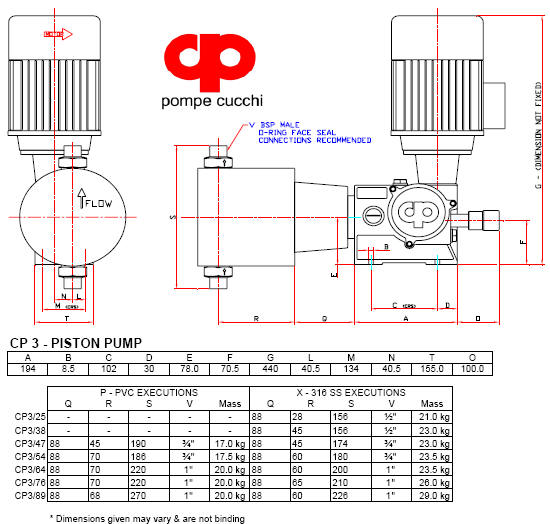

CP & CPP - PISTON WET ENDS



Piston heads may be used when the liquids are clear, for liquids that are non-crystallising and docucchi_CPP2/25 XV_green not contain particles in suspension. cucchi_CPP2/25 XV_red

The Wet-End consists of the Head, Valves, Piston and Piston Seals.

Wet-End is connected to the gearbox via an intermediate spacing flange which prevents damage to the gearbox mechanism in the event of an aggressive fluid leak.

On request more than one head, Multiplex Pump, can be assemble to allow for proportional metering of different fluids or double the flow range of the pump.

Gravity assisted ball valves are a standard.

Standard connection to the valves are with male BSP threads or preferably by O-ring face sealing connections. Special flanged connections are also available on request..



 Standard Materials:

  • XT  =  Head, Piston & Valves in S.S. AISI 316 / Piston Seals in PTFE

    • Fluid Temperature 0ºC to 180ºC

    • Pressure up to 20 bar

  • XV =  Head, Piston & Valves in S.S. AISI 316 / Piston Seals in FPM (Viton®)

    • Fluid Temperature 0ºC to 160ºC

    • Pressure up to 20 bar

  •   P = Head & Valves in µPVC / Piston in Ceramic /  Piston Seals in FPM (Viton®)

    • Fluid Temperature 0ºC to 50ºC

    • Pressure up to 20 bar

Gearbox is a robust construction consisting of a single worm reduction gear. Adjustment of the pumped volume per stroke can be varied manually from 0-100%, whilst the pump is running or at rest, via a control knob which has an easy to read scale.

  • SLOW SPEED DOSING PUMP

    • Viscosity up to 300 cPs

    • Flow Rates up to 519 l/hr

  • FAST SPEED DOSING PUMP

    • Viscosity up to 150 cPs

    • Flow Rates up to 1050 l/hr

Motors are standard IEC frames, 4 pole - IP55 - TEFC, mounted vertically to the gearbox via a close coupled B14 flange. Standard motors are available in 400V or 525V three as well as 230V single phase. On special request motors can be ordered with other specifications, including explosion proof.
